Key takeaways
- Plan actual bookcase openings from shelf pin increments, object heights and handling room, with an example showing how one move changes two shelves.
What's inside

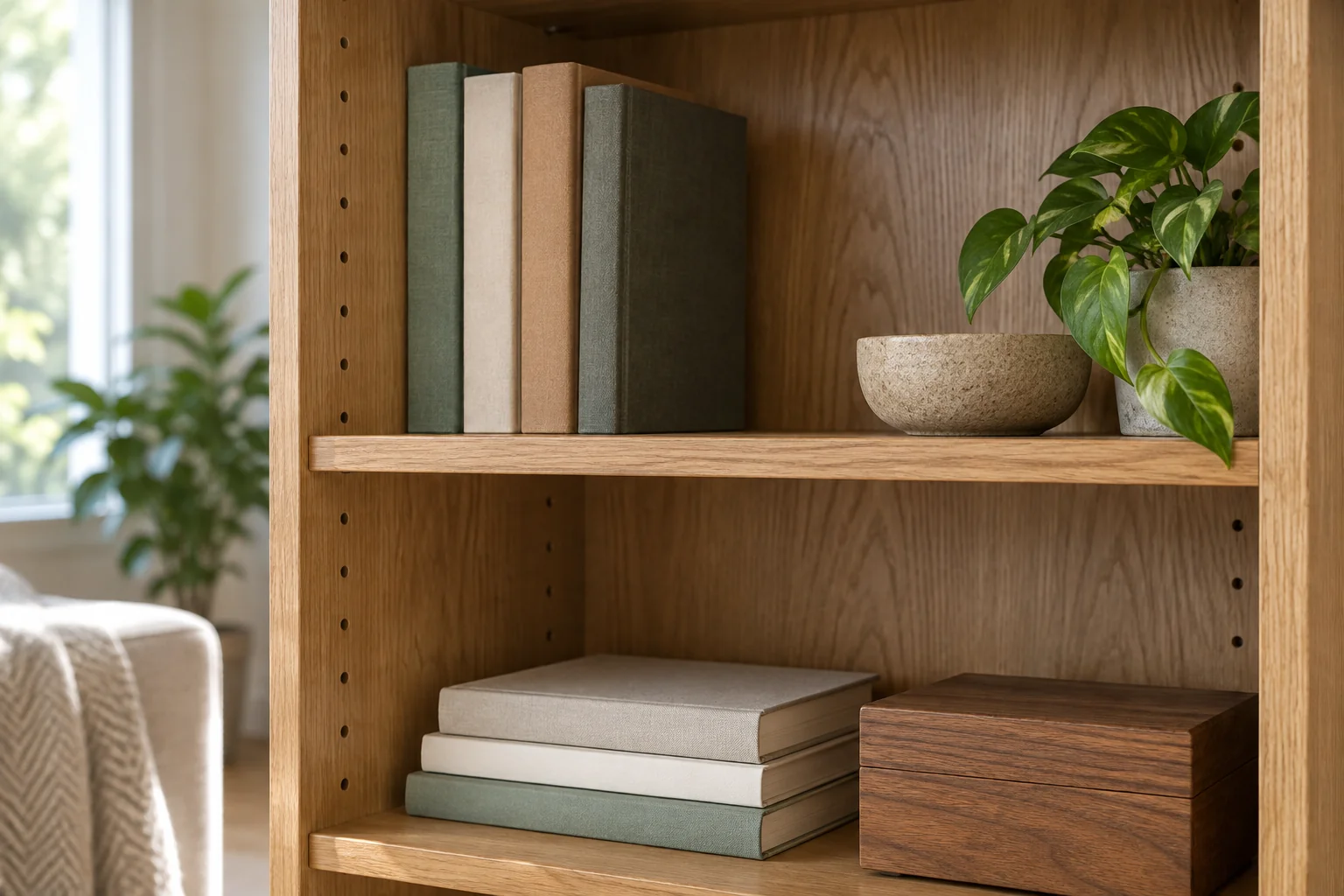

An adjustable bookcase does not offer every possible shelf height. Its support holes create a series of available positions, and moving a shelf upward makes the space above it smaller. Plan the actual clear openings for your books and objects before buying or rearranging the unit, while keeping fixed structural shelves in their prescribed positions.
Distinguish hole spacing from usable opening height
The distance between adjacent support-hole centers is the adjustment increment. Clear opening height is the space from one shelf’s top surface to the underside of the shelf above. Shelf thickness and support design sit between those concepts, so a count of holes alone may not tell you the final opening.
Measure an assembled example when possible. Note the current clear opening, then see how one permitted shelf-position change affects it. Do not assume every bookcase uses the same increment, or that an online discussion about another model gives the right spacing for yours.
The IKEA US BILLY article 20522046 listing, for example, identifies one stationary shelf and four adjustable shelves. That distinction matters to a layout plan. It does not mean the stationary shelf can be moved to gain a taller opening, nor does the listing’s overall height reveal every usable compartment dimension.
Measure objects in the way you will store them
For upright books, record the tallest height in each group, including a dust jacket or slipcase when present. For a storage box, measure its outside dimensions with the lid fitted. Include any handle or lip that must pass through the opening. A nominal box size may describe its interior rather than the outside you need to fit.
Add whatever handling space your intended use requires, based on a trial with the object. A book that fits tightly under a shelf may still be awkward to remove. Do not use one universal handling allowance for everything: a light paperback, heavy album and lidded box are handled differently.
Check width and depth too. A tall-enough opening does not establish that the shelf supports the full object footprint or that the load stays within its rating. Keep heavier items and placement consistent with the furniture’s instructions rather than concentrating weight wherever a tall gap happens to be available.
Build an opening-height worksheet
| Record | Opening below adjustable shelf | Opening above it |
|---|---|---|
| Current clear height | Measure surface to underside | Measure separately |
| Tallest intended object | Include case, lid or jacket | Include case, lid or jacket |
| Handling space | Trial the needed removal motion | Trial the needed removal motion |
| Available adjustment | Confirmed hole increment and range | Same moving shelf affects this space |
| Planned position | New clear height | Remaining clear height |
| Other constraints | Load, depth and fixed parts | Load, depth and fixed parts |
Worked example: one change affects two compartments
Imagine a hypothetical bookcase with a verified one-inch adjustment increment. The lower opening is currently 11 inches high. A group of albums needs 11.5 inches plus a half-inch handling allowance established by the owner’s trial, so the target is 12 inches.
Moving the adjustable shelf up one permitted position increases the lower opening to 12 inches. If the upper opening was 13 inches and its upper boundary remains fixed, it becomes 12 inches. The lower group now meets its planned height, but the upper group must be checked again.
If the upper objects require 12.5 inches with handling room, the proposed change fails as a combined layout. The owner can rearrange groups among other permitted openings or choose another storage location. They should not angle support pins, omit supports or drill a new row to split the difference.
These dimensions are illustrative and are not BILLY measurements. An actual system’s increments, fixed boundaries and support arrangement must be confirmed for that product.
Check all support positions before loading
Follow the assembly instructions for moving a shelf. Empty it first and use the required matching supports at the corresponding positions. Do not remove parts while a loaded shelf rests above your hands. If a pin, locking part or hole is damaged, obtain the appropriate replacement or service advice before using that position.
Complete the specified anchoring before normal use. Adjustability does not make an unanchored tall bookcase safe to load, and a fixed middle shelf may perform a structural role beyond holding books. Do not reinterpret its location as an optional design choice.
Save the arrangement as a repeatable plan
Use a simple front-view sketch with each opening’s clear height and intended contents. Mark fixed shelves distinctly from adjustable ones. Record the approved support positions in the way the instructions identify them, rather than putting adhesive marks on a finish without permission.
After loading within the stated limits, check that objects can be removed without pulling on the furniture or using shelves as steps. Revisit the worksheet when a new box or taller book arrives. The aim is a set of usable openings that works together, not one impressive gap created at the expense of the compartment above it.
